Connect BigQuery

Authentication

JSON keyfile

Uploading a service account JSON keyfile

While the fields in a BigQuery connection can be specified manually, we recommend uploading a service account JSON keyfile to quickly and accurately configure a connection to BigQuery.

Uploading a JSON keyfile should populate the following fields:

• Project id
• Private key id
• Private key
• Client email
• Client id
• Auth uri
• Token uri
• Auth provider x509 cert url
• Client x509 cert url

In addition to these fields, there are two other optional fields that can be configured in a BigQuery connection:

Field	Description	Examples
Timeout	Deprecated; exists for backwards compatibility with older versions of dbt and will be removed in the future.	300
Location	The location where dbt should create datasets.	US, EU

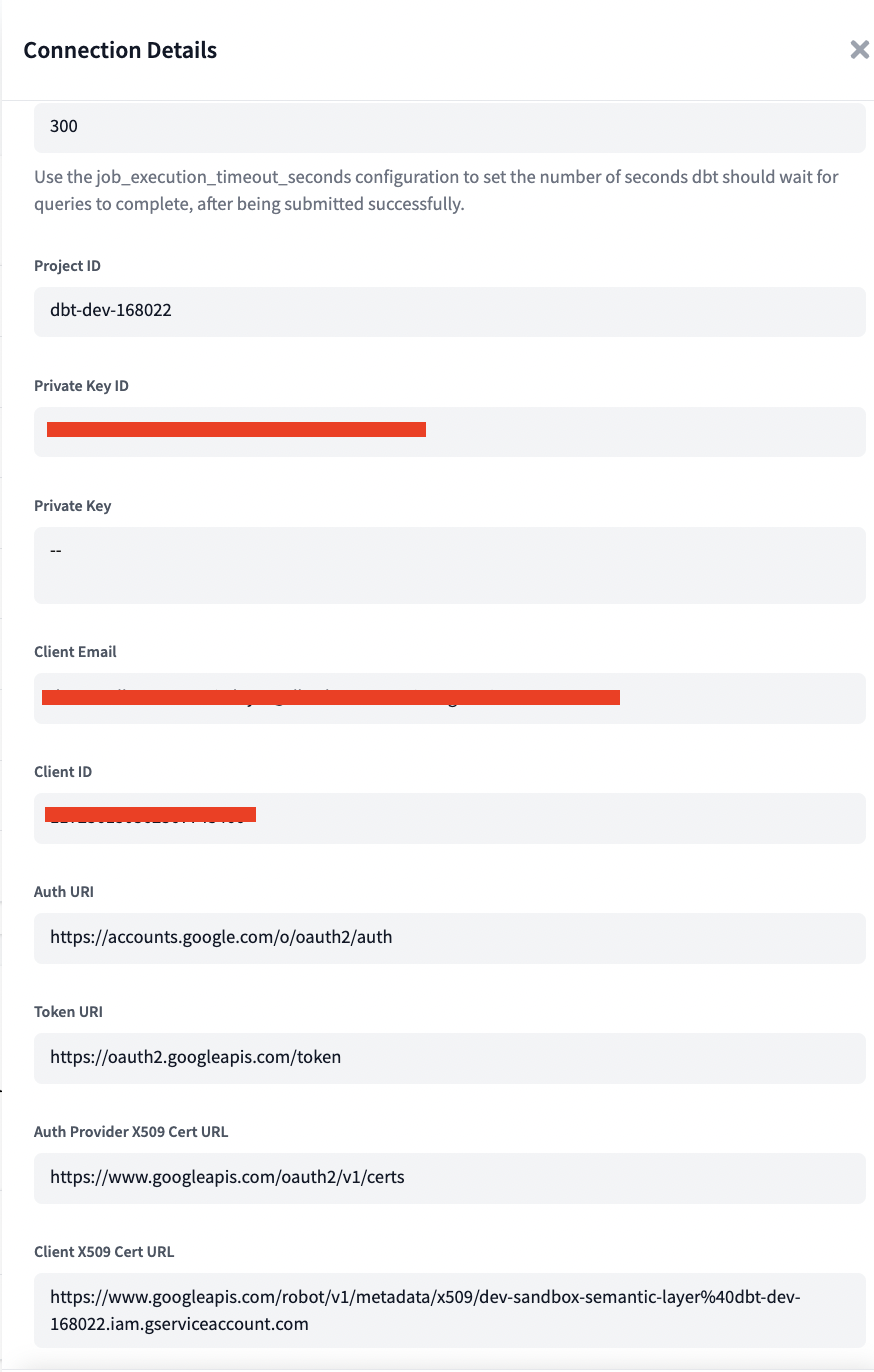

A valid BigQuery connection

BigQuery OAuth

Available in: Development environments, Enterprise plans only

The OAuth auth method permits dbt Cloud to run development queries on behalf of a BigQuery user without the configuration of BigQuery service account keyfile in dbt Cloud. For more information on the initial configuration of a BigQuery OAuth connection in dbt Cloud, please see the docs on setting up BigQuery OAuth.

As an end user, if your organization has set up BigQuery OAuth, you can link a project with your personal BigQuery account in your personal Profile in dbt Cloud, like so:

Link Button in dbt Cloud Credentials Screen

Configuration

To learn how to optimize performance with data platform-specific configurations in dbt Cloud, refer to BigQuery-specific configuration.

Optional configurations

In BigQuery, optional configurations let you tailor settings for tasks such as query priority, dataset location, job timeout, and more. These options give you greater control over how BigQuery functions behind the scenes to meet your requirements.

To customize your optional configurations in dbt Cloud:

1. Click your name at the bottom left-hand side bar menu in dbt Cloud
2. Select Your profile from the menu
3. From there, click Projects and select your BigQuery project
4. Go to Development Connection and select BigQuery
5. Click Edit and then scroll down to Optional settings

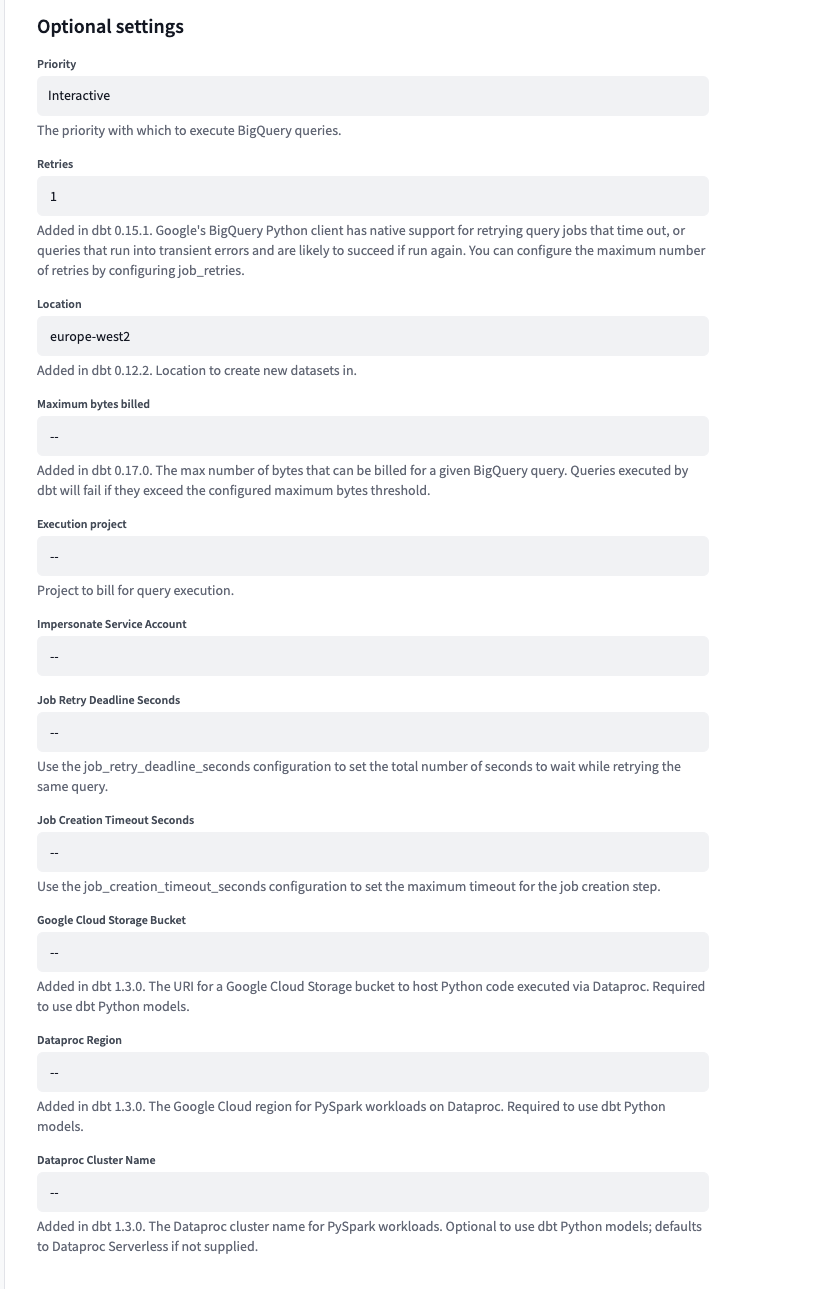

BigQuery optional configuration

The following are the optional configurations you can set in dbt Cloud:

Configuration	Information	Type	Example
Priority	Sets the priority for BigQuery jobs (either interactive or queued for batch processing)	String	batch or interactive
Retries	Specifies the number of retries for failed jobs due to temporary issues	Integer	3
Location	Location for creating new datasets	String	US, EU, us-west2
Maximum bytes billed	Limits the maximum number of bytes that can be billed for a query	Integer	1000000000
Execution project	Specifies the project ID to bill for query execution	String	my-project-id
Impersonate service account	Allows users authenticated locally to access BigQuery resources under a specified service account	String	service-account@project.iam.gserviceaccount.com
Job retry deadline seconds	Sets the total number of seconds BigQuery will attempt to retry a job if it fails	Integer	600
Job creation timeout seconds	Specifies the maximum timeout for the job creation step	Integer	120
Google cloud storage-bucket	Location for storing objects in Google Cloud Storage	String	my-bucket
Dataproc region	Specifies the cloud region for running data processing jobs	String	US, EU, asia-northeast1
Dataproc cluster name	Assigns a unique identifier to a group of virtual machines in Dataproc	String	my-cluster

 Priority

The priority for the BigQuery jobs that dbt executes can be configured with the priority configuration in your BigQuery profile. The priority field can be set to one of batch or interactive. For more information on query priority, consult the BigQuery documentation.

 Retries

Retries in BigQuery help to ensure that jobs complete successfully by trying again after temporary failures, making your operations more robust and reliable.

 Location

The location of BigQuery datasets can be set using the location setting in a BigQuery profile. As per the BigQuery documentation, location may be either a multi-regional location (for example, EU, US), or a regional location (like us-west2).

 Maximum bytes billed

When a maximum_bytes_billed value is configured for a BigQuery profile, that allows you to limit how much data your query can process. It’s a safeguard to prevent your query from accidentally processing more data than you expect, which could lead to higher costs. Queries executed by dbt will fail if they exceed the configured maximum bytes threshhold. This configuration should be supplied as an integer number of bytes.

If your maximum_bytes_billed is 1000000000, you would enter that value in the maximum_bytes_billed field in dbt cloud.

 Execution project

By default, dbt will use the specified project/database as both:

1. The location to materialize resources (models, seeds, snapshots, and so on), unless they specify a custom project/database config
2. The GCP project that receives the bill for query costs or slot usage

Optionally, you may specify an execution project to bill for query execution, instead of the project/database where you materialize most resources.

 Impersonate service account

This feature allows users authenticating using local OAuth to access BigQuery resources based on the permissions of a service account.

For a general overview of this process, see the official docs for Creating Short-lived Service Account Credentials.

 Job retry deadline seconds

Job retry deadline seconds is the maximum amount of time BigQuery will spend retrying a job before it gives up.

 Job creation timeout seconds

Job creation timeout seconds is the maximum time BigQuery will wait to start the job. If the job doesn’t start within that time, it times out.

Run dbt python models on Google Cloud Platform

To run dbt Python models on GCP, dbt uses companion services, Dataproc and Cloud Storage, that offer tight integrations with BigQuery. You may use an existing Dataproc cluster and Cloud Storage bucket, or create new ones:

• https://cloud.google.com/dataproc/docs/guides/create-cluster
• https://cloud.google.com/storage/docs/creating-buckets

 Google cloud storage bucket

Everything you store in Cloud Storage must be placed inside a bucket. Buckets help you organize your data and manage access to it.

 Dataproc region

A designated location in the cloud where you can run your data processing jobs efficiently. This region must match the location of your BigQuery dataset if you want to use Dataproc with BigQuery to ensure data doesn't move across regions, which can be inefficient and costly.

For more information on Dataproc regions, refer to the BigQuery documentation.

 Dataproc cluster name

A unique label you give to your group of virtual machines to help you identify and manage your data processing tasks in the cloud. When you integrate Dataproc with BigQuery, you need to provide the cluster name so BigQuery knows which specific set of resources (the cluster) to use for running the data jobs.

Have a look at Dataproc's document on Create a cluster for an overview on how clusters work.

Account level connections and credential management

You can re-use connections across multiple projects with global connections. Connections are attached at the environment level (formerly project level), so you can utilize multiple connections inside of a single project (to handle dev, staging, production, etc.).

BigQuery connections in dbt Cloud currently expect the credentials to be handled at the connection level (and only BigQuery connections). This was originally designed to facilitate creating a new connection by uploading a service account keyfile. This describes how to override credentials at the environment level, via extended attributes, to allow project administrators to manage credentials independently of the account level connection details used for that environment.

For a project, you will first create an environment variable to store the secret private_key value. Then, you will use extended attributes to override the entire service account JSON (you can't only override the secret key due to a constraint of extended attributes).

1. New environment variable

   • Create a new secret environment variable to handle the private key: DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY
   • Fill in the private key value according the environment

   To automate your deployment, use the following admin API request, with XXXXX your account number, YYYYY your project number, ZZZZZ your API token:

   curl --request POST \
   --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/environment-variables/bulk/ \
   --header 'Accept: application/json' \
   --header 'Authorization: Bearer ZZZZZ' \
   --header 'Content-Type: application/json' \
   --data '{
   "env_var": [
   {
       "new_name": "DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY",
       "project": "Value by default for the entire project",
       "ENVIRONMENT_NAME_1": "Optional, if wanted, value for environment name 1",
       "ENVIRONMENT_NAME_2": "Optional, if wanted, value for environment name 2"
   }
   ]
   }'

2. Extended attributes

   In the environment details, complete the extended attributes block with the following payload (replacing XXX with your corresponding information):

   keyfile_json:
     type: service_account
     project_id: xxx
     private_key_id: xxx
     private_key: '{{ env_var(''DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY'') }}'
     client_email: xxx
     client_id: xxx
     auth_uri: xxx
     token_uri: xxx
     auth_provider_x509_cert_url: xxx
     client_x509_cert_url: xxx

   If you require other fields to be overridden at the environment level via extended attributes, please respect the expected indentation (ordering doesn't matter):

   priority: interactive
   keyfile_json:
     type: xxx
     project_id: xxx
     private_key_id: xxx
     private_key: '{{ env_var(''DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY'') }}'
     client_email: xxx
     client_id: xxx
     auth_uri: xxx
     token_uri: xxx
     auth_provider_x509_cert_url: xxx
     client_x509_cert_url: xxx
   execution_project: buck-stops-here-456

   To automate your deployment, you first need to create the extended attributes payload for a given project, and then assign it to a specific environment. With XXXXX as your account number, YYYYY as your project number, and ZZZZZ as your API token:

   curl --request POST \
   --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/extended-attributes/ \
   --header 'Accept: application/json' \
   --header 'Authorization: Bearer ZZZZZ' \
   --header 'Content-Type: application/json' \
   --data '{
   "id": null,
   "extended_attributes": {"type":"service_account","project_id":"xxx","private_key_id":"xxx","private_key":"{{ env_var('DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY')    }}","client_email":"xxx","client_id":xxx,"auth_uri":"https://accounts.google.com/o/oauth2/auth","token_uri":"https://oauth2.googleapis.com/token","auth_provider_x509_cert_url":"https://www.googleapis.com/oauth2/v1/certs","client_x509_cert_url":"xxx"},
   "state": 1
   }'

   Make a note of the id returned in the message. It will be used in the following call. With EEEEE the environment id, FFFFF the extended attributes id:

   curl --request POST \
   --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/environments/EEEEE/ \
   --header 'Accept: application/json' \
   --header 'Authorization: Bearer ZZZZZZ' \
   --header 'Content-Type: application/json' \
   --data '{
     "extended_attributes_id": FFFFF
   }'
